Ultraviolet Flame Detector for Fire Alarm Systems with Infrared/UV Sensor Technology and Relay Output UV Fire Detector

Brand Name : XHA

Model Number : KF715UV

Certification : CCC

Place of Origin : China

MOQ : 1

Price : negotiable

Payment Terms : T/T,Western Union

Supply Ability : 1000/Month

Delivery Time : 3 Working days

Packaging Details : 360*250*460mm

Origin : China

Installation : Wall mounted

Level of protection : IP66

Working Voltage : DC24V

Customization : Available | Customized Request

PCS/Carton : 8pcs

detector type : Ultroviolet flame detector

Fire response time : ≤10S

Respond time : less than 10s

Anti-theft Alarm System Approach : Active

Output : Relay Output

Contact Now

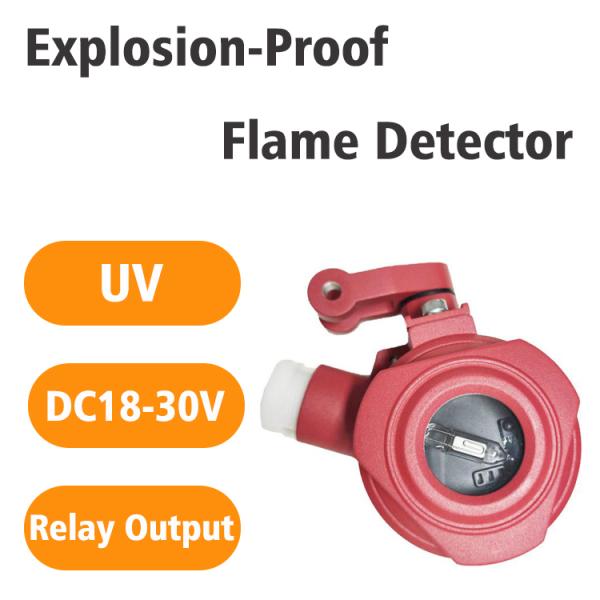

Relay Output Explosion Proof Ultraviolet UV Flame Detector For Fire Alarm System

Ultraviolet Flame Detector for Fire Alarm Systems with Infrared/UV Sensor Technology and Relay Output UV Fire Detector

Introduction

The flame detector is a Infrared/ultraviolet flame detector produced by our company. The equipment adopts high-performance sensor (infrared wavelength 2.2μm/3.8μm/4.4μm/5.3μm, ultraviolet wavelength 185 ~ 260nm), infrared wavelength 4.4μm sensor has high sensitivity to carbon dioxide generated by hydrocarbon combustion. The uv sensor is very sensitive to the ultraviolet radiation emitted by the flame. Other sensors filter the ambient light and ambient thermal radiation infection to better avoid the interference of the ambient environment on the detection results. Microcontroller technology, combined with sophisticated SMD process manufacturing, has good repeatability and temperature and humidity characteristics, long service life, easy to operate and other advantages.

The flame detector can not only give early alarm to organic compound combustion flame, but also has good alarm performance to inorganic combustion flame.

It's suitable for the industries of petroleum, petrochemical refineries, pipelines, chemical plant, coking plant, oil depot and gas station, CNG, LNG, wine library, spray paint room, drilling platform, city gas, boiler room, metallurgical industry, fire engineering, ships, electric power industry and so on easy to produce liquid or gas fire, smokeless fire and explosion.

Specifications

Product type:
XHA-IR1/IR2

KF715IR3
KF715UV
KF715UV/IR2

Working voltage	18V-32VDC
Interface	1xNPT 3/4
UV Flame Detector Detection Angle	120 degree
Infrared Flame Detector Detection Angle	90 degree
Level of protection	IP66
Explosion Proof Level	Ex d lIC T6 Gb. Ex tD A21 IP66/IP67 T80℃
Alarm Status	≤50mA/24VDC
Fire response time	≤10S
Detection range	Level I 25meters(33cm*33cm Ethanol fire)
Working environment	humidity ≤95%RH, no condensation

Ultraviolet Flame Detector for Fire Alarm Systems with Infrared/UV Sensor Technology and Relay Output UV Fire Detector

Product range

Conventional Fire Alarm System
Addressable fire alarm system
Gas Extinguishing control system
Beam Detector
4 wire smoke detectors with relay output.
2 wire Conventional smoke and heat detectors
Explosion-proof flame detector for fire alarm system
Standalone smoke detectors and combustable gas detector

Service

1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 10 working days lead time.
5. Welcome sample order.
